FEATURES & APPLICATIONS
Features
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- Quick-change chucks – changing bits is fast and tool-free
- Extra-long lifetime thanks to a highly robust chuck, motor components and casing
- Active Vibration Reduction (AVR) makes working with the tool less tiring and increases productivity
- Perfect balance, low weight and compact design for superior working comfort
Applications

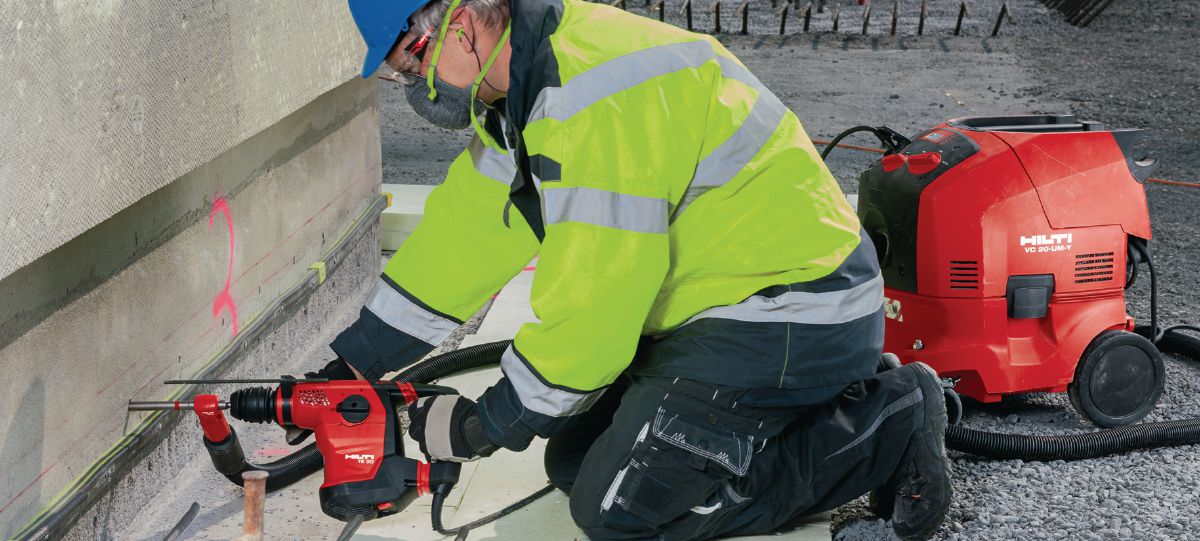

- Drilling anchor, rebar and through holes in concrete and masonry – possible diameter range 4-28 mm, recommended diameter range 10-20 mm

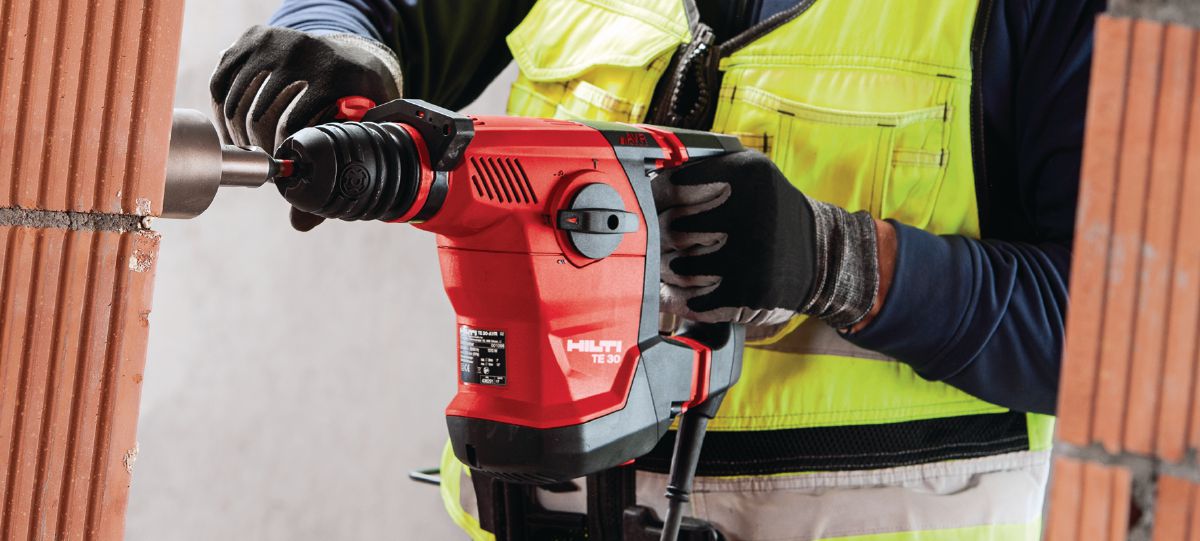

- Chiselling in brick and block, corrective chiselling and surface finishing on concrete
- Drilling in wood and metal using the optional quick-release chuck and drill bits with smooth shank up to 13 mm diameter
- Driving anchor screws and concrete screw anchors
PRODUCT INFORMATION
Combihammer TE 30-AVR 230V case
- Item Number: 2160220
- # of items in Package: 1
TECHNICAL DATA
- Weight according EPTA Procedure 01/2003 without battery : 4.2 kg
- Optimum hammer drilling range : 10 - 20 mm
- Single impact energy : 3.6 J
- Working mode : Hammer drilling, Drilling, Chisel setting, Chiselling
- Hammer drilling diameter range :5 - 28 mm
- Hammer drilling RPM : 1100 rpm
- Full hammering frequency : 4500 impacts/minute
- Functionality : Active Vibration Reduction (AVR), Chiselling, Removable chuck, Reverse mode, Depth gauge
- Triaxial vibration value for hammer drilling into concrete (ah,HD) : 9.7 m/s² 1
- Triaxial vibration for chiselling in concrete : 8.8 m/s² 2
- A-weighted emission sound pressure level : 95 dB (A) 3
- Rated input power : 1010 W
- Dimensions (LxWxH) : 371 x 113 x 225 mm
