FEATURES & APPLICATIONS
Features

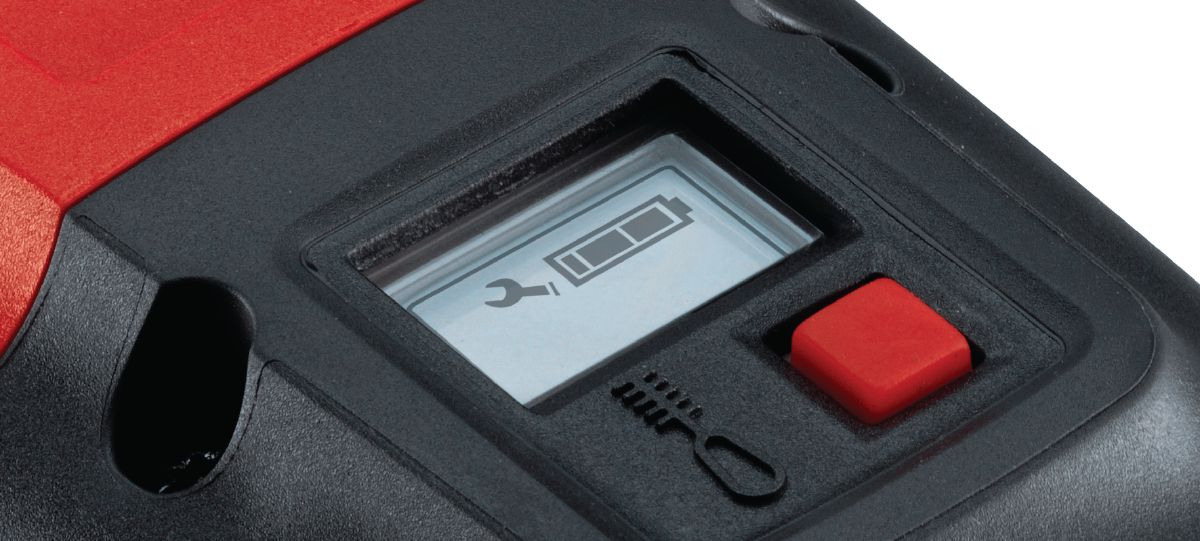

- Smart tool that tells you when cleaning and maintenance are required
- Built-in connectivity with the Hilti Connect app – putting key tool data, how-to videos and technical support at the operator's fingertips
- High productivity: Fully automatic piston return, cartridge transport and 10 nail collation magazine
- With the magazine 10 fasteners can be driven in quick succession without reloading
- Superb ergonomics and design with reduced recoil
Applications

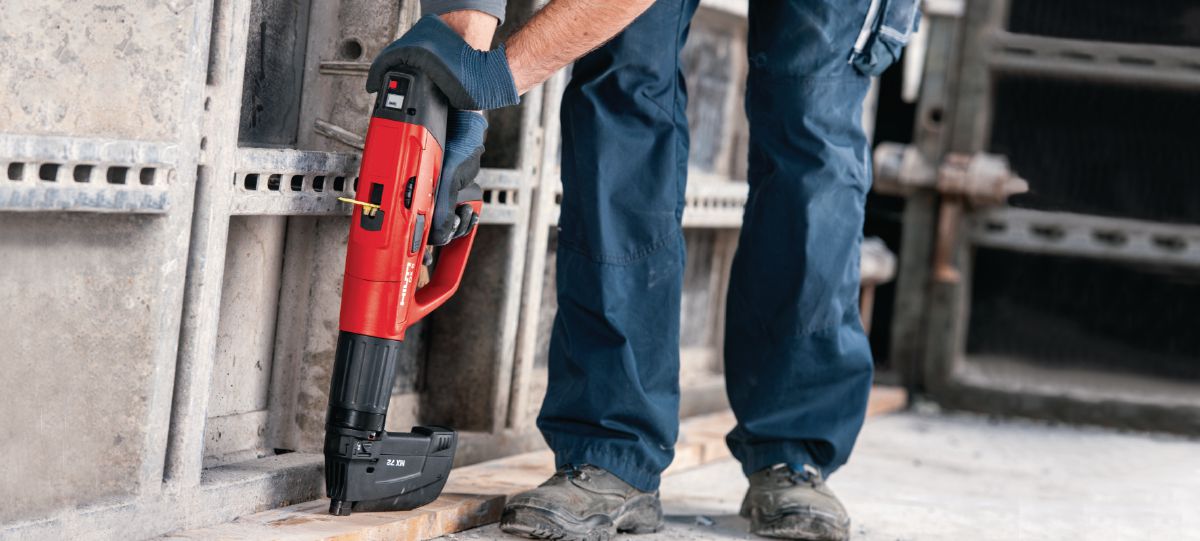

- A wide variety of applications using collated fasteners

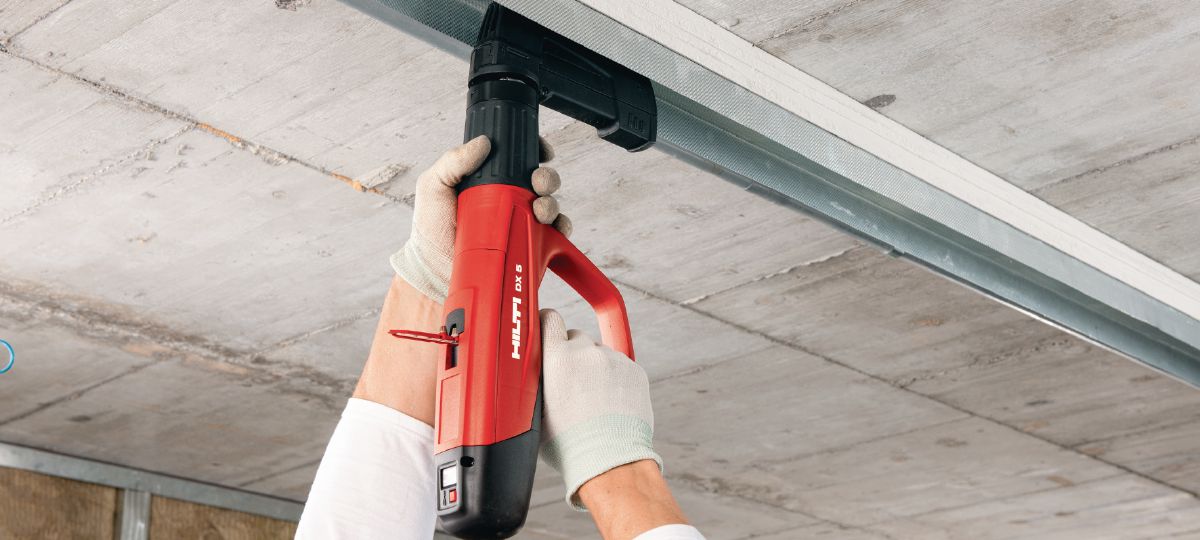

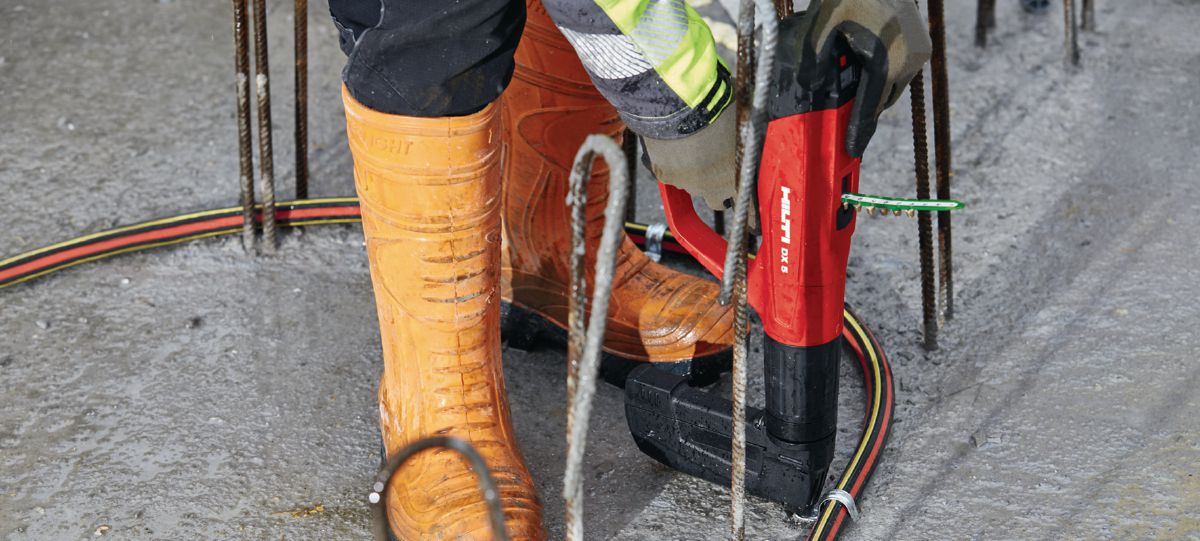

- Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
- Fastening 2x4s to concrete

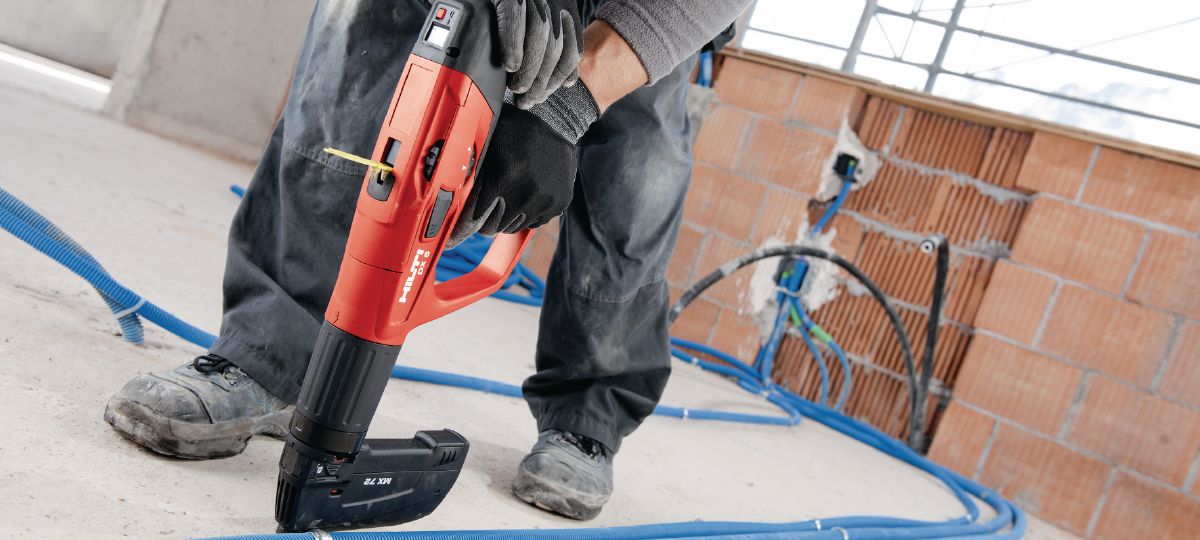

- Attaching drainage foils and membranes to concrete or CMU block
- Fastening perimeter wall, deflection or slip clips to concrete and steel
PRODUCT INFORMATION
Powder-actuated tool DX 5 MX
- Item Number:2142654
- # of items in Package: 1
TECHNICAL DATA
- Dimensions (LxWxH) : 486 x 72 x 180 mm
- Weight : 3.64 kg
- Fastener intake: 10 nails
- Fastener length range: 14 - 72 mm
- Cartridge type : 27 calibre short, 6.8/11 M10
- Automatic piston return: Yes
- Bluetooth: Yes
- Hilti Connect: Yes
- Power (max.): 325 J
- Power regulation: Yes
- Piston type :X-6-5-P8
