FEATURES & APPLICATIONS
Features
- Faster curing - optimized for anchoring applications in dry concrete, wet concrete, or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range (-10°C to +40°C).
- Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
- Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).

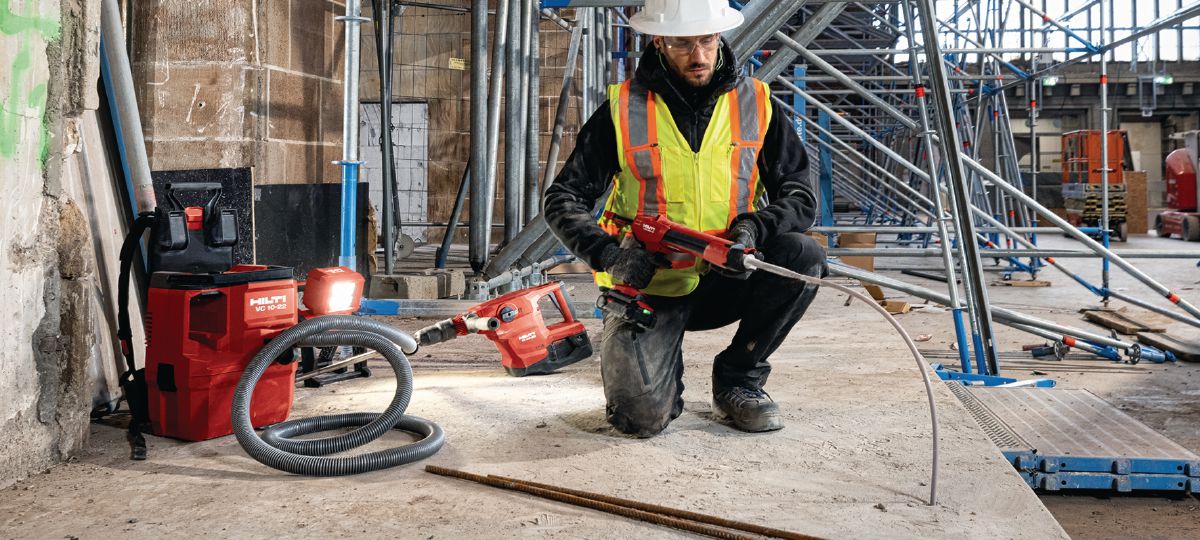

- Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
- Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor
Applications

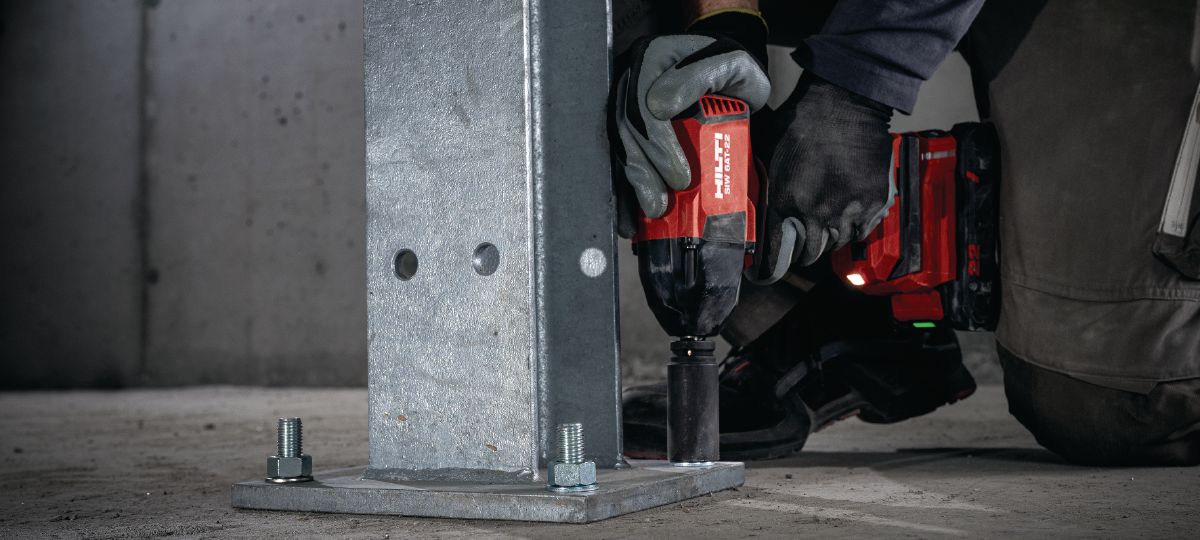

- Anchoring structural steel connections (e.g. steel columns, beams) to concrete
- Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
- Concrete connections designed both as rigid and as simply supported

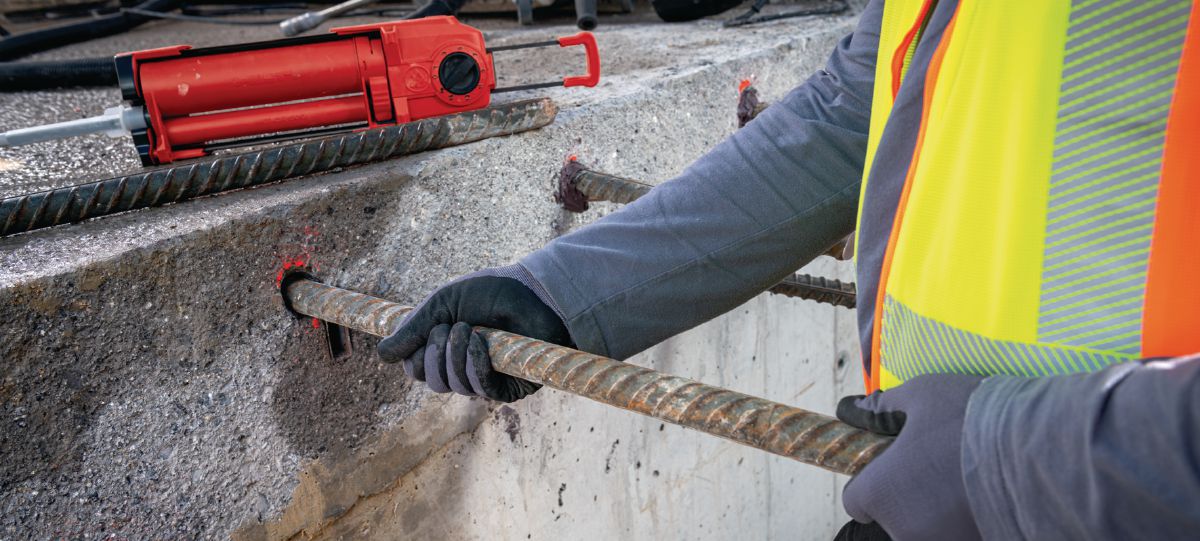

- Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
- structural concrete connections with post-installed rebar
PRODUCT INFORMATION
Injectable mortar HY 200-A V3 500/2
- Item Number: 2378172
- # of items in Package: 1
TECHNICAL DATA
- Base materials :Concrete (cracked), Concrete (lightweight), Concrete (uncracked), Masonry (grout-filled CMU)
- Base material condition (as per approval): Dry, Water-filled, Wet
- Approvals / Test reports :DOT approval (contact Hilti), ICC-ES report (concrete), ICC-ES report (masonry), LABC, Seismic
- IBC compliance : IBC 2015, IBC 2018, IBC 2021
- Seismic loading :Yes
- PROFIS Software: Yes
- Anchoring elements: HAS threaded rods, HIS-N internally threaded sleeves, HIT-V threaded rods, HIT-Z torque controlled bonded anchors, Rebar
- Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Non Cleaning
- Storage and transportation temperature range: 41 - 77 °F
- In-service temperature – range: -40 - 248 °F
- Free of styrene: Yes
Documents
Technical Datasheet HY 200-A/R V3 concrete to concrete
Technical data sheet for HIT-HY 200-A-R-V3 steel to concrete injectable mortar
Post-installed fastening solutions in concrete
Material safety datasheet HIT-HY 200-A V3
Operating Instruction HIT-HY 200-A V3
Certificate : CoCP 2873-CPR-201-60 HIT-HY 200-A-R V3 rebar for ETA-19-0665
Certificate : CoCP 2873-CPR-201-55_HIT-HY 200-A,-R V3 rebar for ETA-19-0600
