FEATURES & APPLICATIONS
Features
- Two-screw pipe ring to simplify pipe installation
- Short connection head allows installation close to a wall, floor or ceiling
- Clamping ranges suitable for all standard plastic and steel pipes
- High quality recognised by third-party approvals
- Securely fixed rubber inlay – virtually impossible to drop or lose

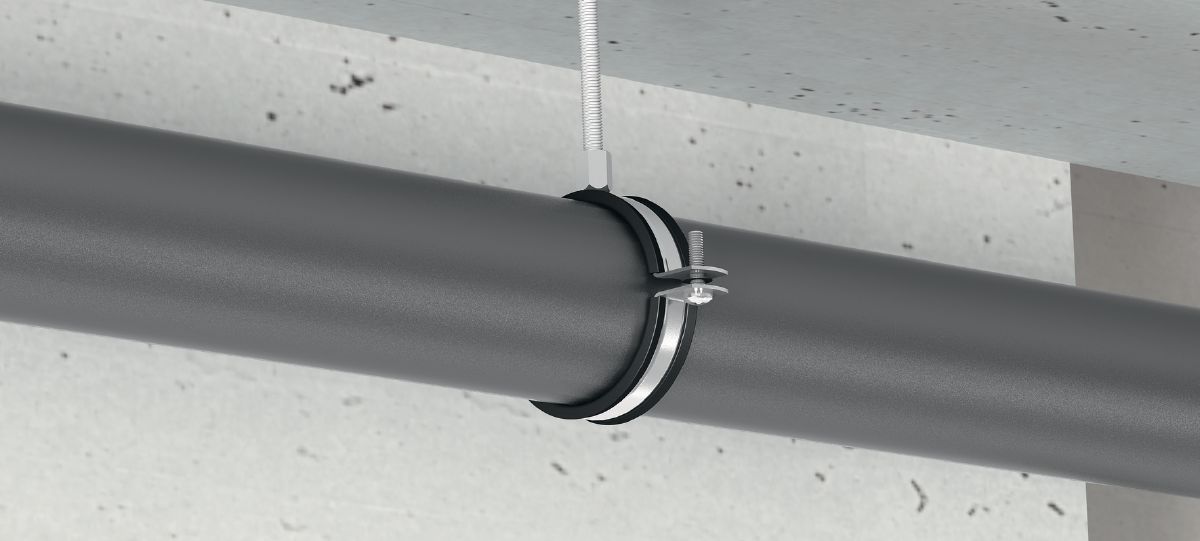

Applications
- Light to medium-duty pipe installations
- Fastening pipes in residential and industrial construction
- Fastening fresh water, waste water and heating pipes in residential and industrial construction
- Recommended for use in dry, interior environments
- Pipe rings for use in dry interiors only
PRODUCT INFORMATION
Pipe ring MP-PI 107-115 4" M8/M10
- Item Number:2073475
- # of items in Package: 1
Pipe ring MP-PI 11-15 1/4" M8/M10
- Item Number:2126900
- # of items in Package: 1
Pipe ring MP-PI 16-20 3/8" M8/M10
- Item Number:2126901
- # of items in Package: 1
Pipe ring MP-PI 25-28 3/4" M8/M10
- Item Number:2126903
- # of items in Package: 1
Pipe ring MP-PI 32-36 1" M8/M10
- Item Number:2126904
- # of items in Package: 1
Pipe ring MP-PI 38-46 11/4" M8/M10
- Item Number:2126905
- # of items in Package: 1
Pipe ring MP-PI 48-53 11/2" M8/M10
- Item Number:2126906
- # of items in Package: 1
Pipe ring MP-PI 54-58 M8/M10
- Item Number2126907
- # of items in Package: 1
Pipe ring MP-PI 59-66 2" M8/M10
- Item Number2126908
- # of items in Package: 1
Pipe ring MP-PI 67-73 M8/M10
- Item Number: 2073470
- # of items in Package: 1
Pipe ring MP-PI 75-80 21/2" M8/M10
- Item Number: 2073471
- # of items in Package: 1
Pipe ring MP-PI 81-87 M8/M10
- Item Number: 2073472
- # of items in Package: 1
Pipe ring MP-PI 99-105 31/2" M8/M10
- Item Number: 2073474
- # of items in Package: 1

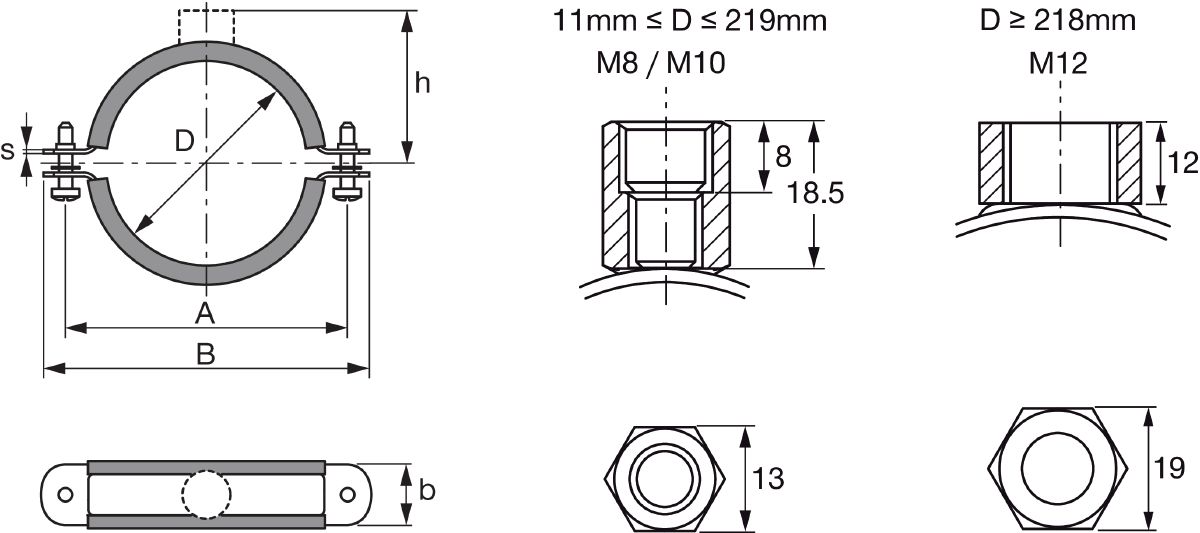

TECHNICAL DATA
- Approvals : Acustic insulaton DIN 4109 inspected, Fire Class E
- Noise reduction:16 dB (A)
- Temperature resistance:-40 - 110 °C
- Material composition: SPCC-SD FB - Q/BQB402, DC01 – EN 10130
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
- Insulation material: EPDM
- Hardness insulation material: 75° ±5° Shore A
- Additional product information: If pipe rings diameter 8 inch and above are fixed with two threaded roads, the maximum load can be achieved
