FEATURES & APPLICATIONS
Features
- Advanced cordless performance – heavy-duty cordless impact wrench offers higher torque and greater power in a more compact body
- Designed to last – robust brushless motor and ¾” anvil contribute to the durability and consistent performance of our cordless impact wrenches
- More productivity and control – two speed settings and brighter LED light so you can transition easily from heavy to lighter-duty applications
- Less vibration for more user comfort – lower tool vibration enables longer periods of work without user fatigue
- On the Nuron battery platform – cordless tools without compromise, thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow
Applications

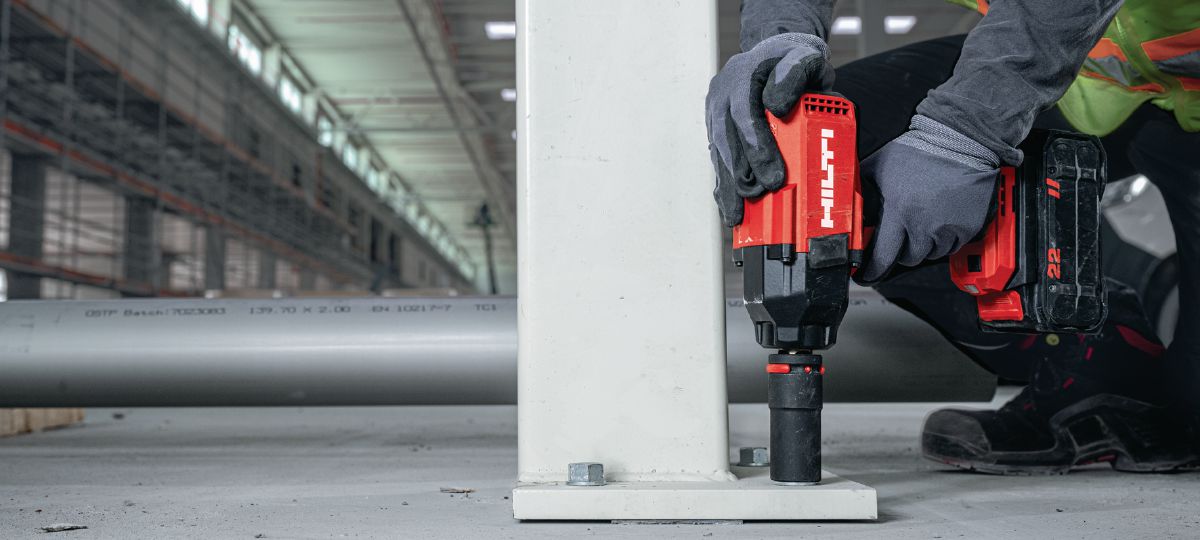

- Bolting steel for primary and secondary steel structures, handrails, racking and machinery (up to M30 diameter high-tensile bolts)
- Loosening large rusty bolts for maintenance, operation and repair work
- Setting large diameter HUS anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (10-16 mm diameter)
- Lag bolting in wood for primary and secondary wood structures, wooden roofs or temporary structures (12-20 mm diameter)
- Bolting structural steel connections, pipe flanges, equipment, 1/2”to 1 1/8” diameter structural bolts
PRODUCT INFORMATION
Cordl. impact wrench SIW 10-22 3/4" case
- Item Number: 2361530
- # of items in Package: 1
TECHNICAL DATA
- Anvil type : 3/4" through hole with friction ring
- Maximum torque : 850 Nm (1); 1600 Nm (2) 1
- Nut-busting torque : 2000 Nm
- Full hammering frequency: 2500 impacts/minute
- Number of gears: 2
- No load RPM: gear 1: 1000 rpm; gear 2: 1250 rpm
- Dimensions (LxWxH): 217 x 86 x 235 mm
- Tool body weight: 2.9 kg
- A-weighted emission sound pressure level: 100 dB (A) 2
