FEATURES & APPLICATIONS
Features
- Compatible with the Hilti SI-AT-22 Adaptive Torque module for more controlled fastenings – helps to avoid over- or under-torque. Also compatible with Hilti stud anchors, cast-in anchors, installation systems and other controlled bolting applications
- Faster concrete screw anchor setting from a more compact tool, thanks to the combination of brushless motor and next-generation Nuron batteries
- More durable build – the brushless motor and friction ring anvil contribute to the longevity of our cordless impact wrenches
- Faster anchor setting with more control – two speed settings and an improved LED light mean you can set larger fasteners more quickly and precisely
- More comfortable to use – slimmer, 52 mm shorter and 0.4 kg lighter than its predecessor, helping to delay fatigue when bolting and anchoring all day
Applications
- Setting HUS screw anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (8-16 mm diameter)

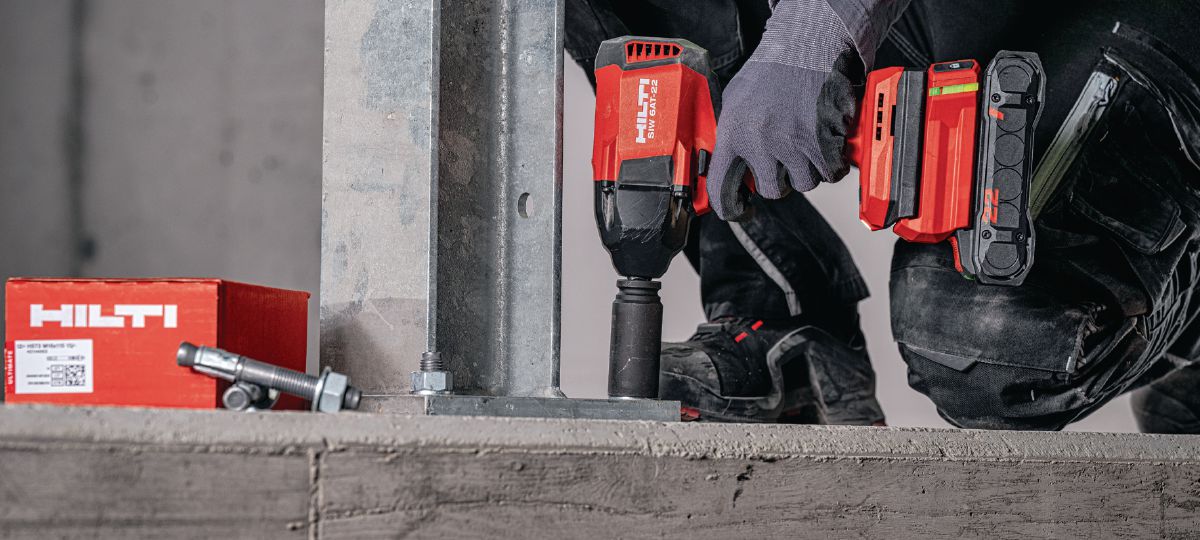

- Setting Hilti stud anchors in concrete with Adaptive Torque module (M10-M24)

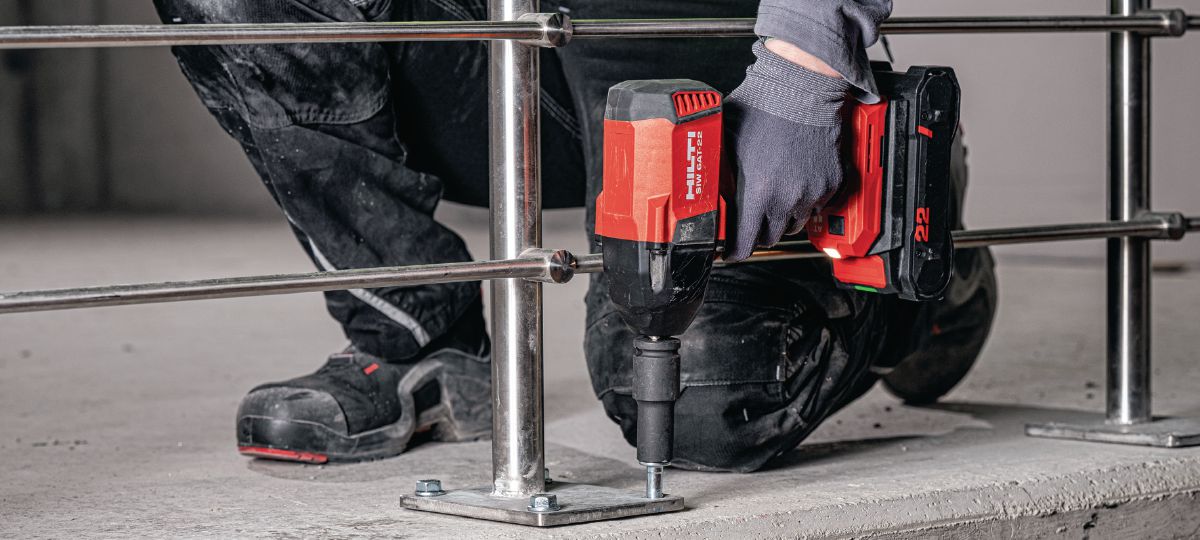

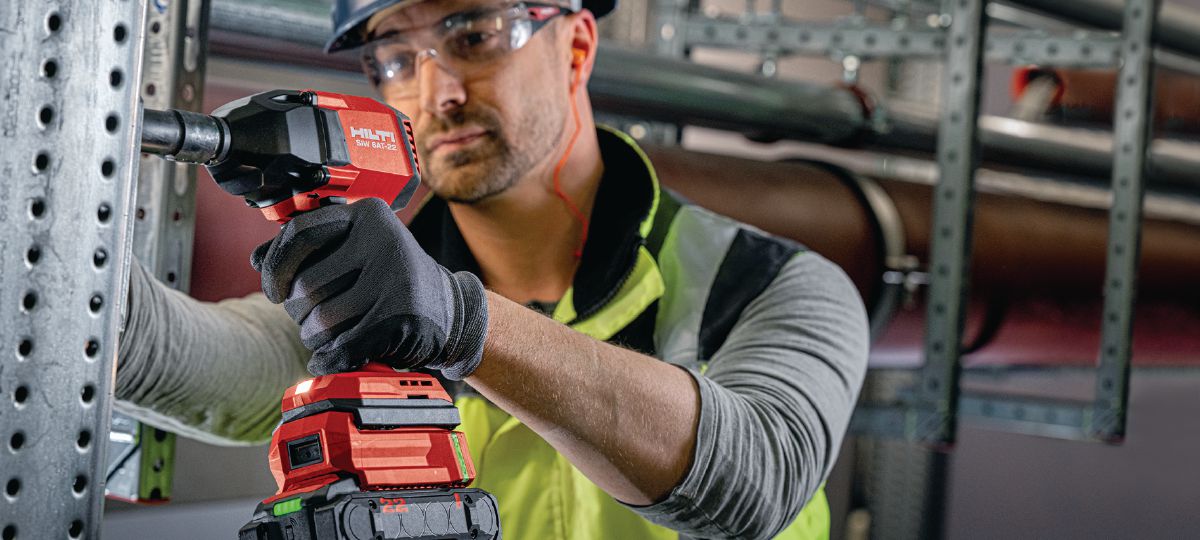

- Bolting steel for primary and secondary steel structures, handrails, racking and machinery (M10-M20)
- Lag bolting in wood for primary and secondary wood structures, wood roofs or temporary structures (8-16 mm diameter)
- Setting Hilti MT installation system more quickly and safely with Adaptive Torque module
PRODUCT INFORMATION
Cordl. impact wrench SIW 6AT-22 1/2" case
- Item Number: 2365081
- # of items in Package: 1
TECHNICAL DATA
- Anvil type : 1/2" friction ring
- Maximum torque : 300 Nm (1); 450 Nm (2) 1
- Nut-busting torque: 650 Nm
- Full hammering frequency : 3500 impacts/minute
- Number of gears: 2
- No load RPM: gear 1: 1550 rpm; gear 2: 1750 rpm
- Dimensions (LxWxH): 182 x 72 x 220 mm
- Tool body weight: 1.8 kg
- A-weighted emission sound pressure level: 100 dB (A) 2
- Rated voltage: 21.6 V
