FEATURES & APPLICATIONS
Features
- Virtually dustless drilling – contributes to safer jobsites and better visibility of your work area by removing fine particles before they become airborne
- Versatile – suitable for dust collection while drilling and chiseling, including many stop drill bits and setting tools for HDI/HKD drop-in anchors (optional extraction heads may be needed)
- Customisable – two dust box sizes available, so you have the option to choose compactness or capacity depending on the job
- M-Class dust filter with durable container
- Faster repeat drilling – dust removal system includes depth gauge with ruler so that you can easily drill to the required depth every time
Applications

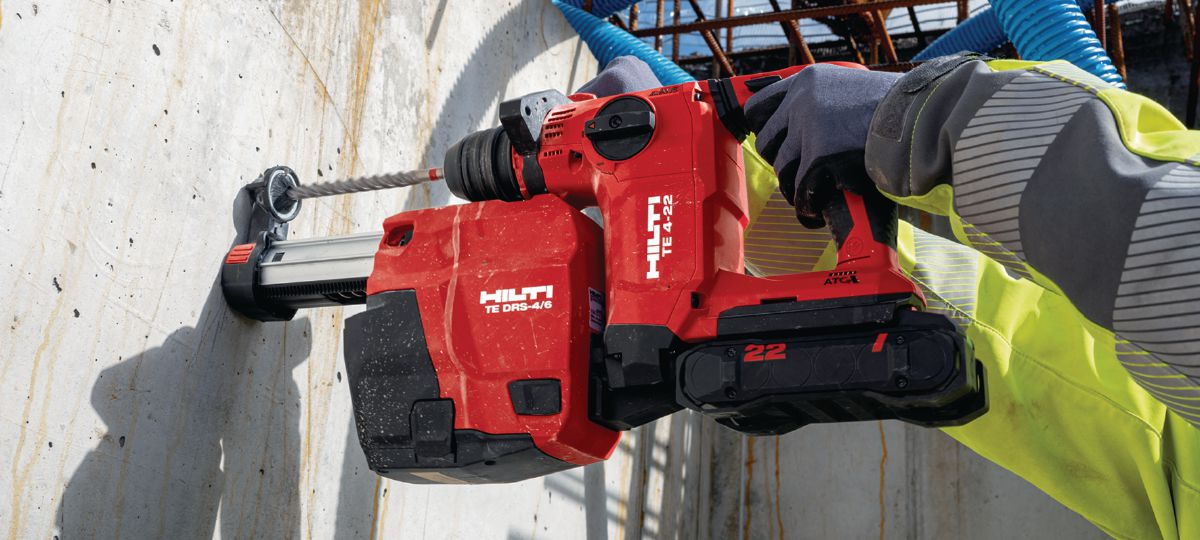

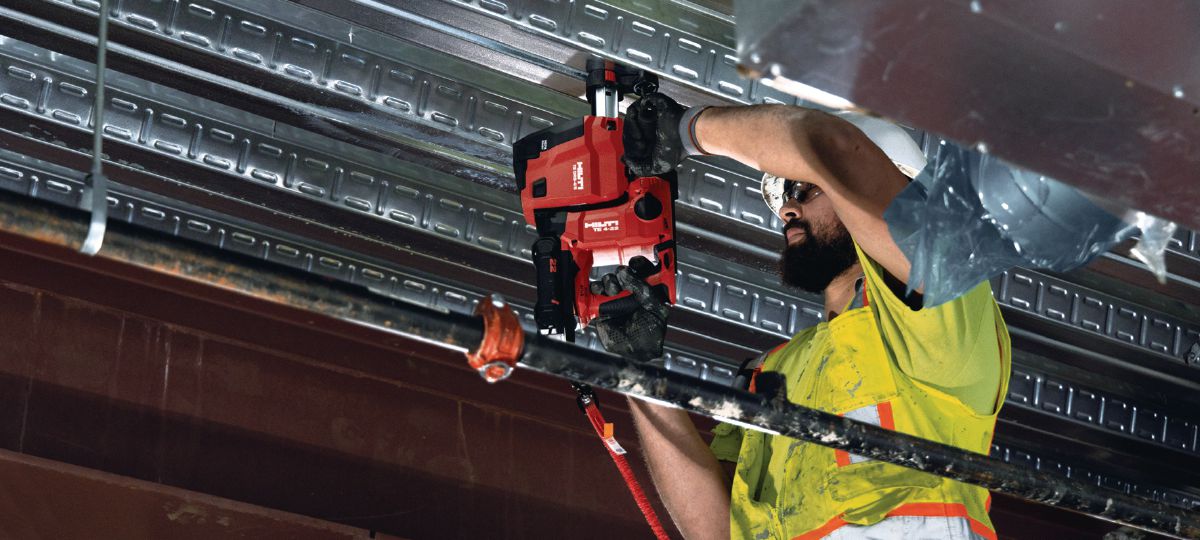

- Virtually dust-free drilling and chiseling with TE 4-22 and TE 6-22 cordless rotary hammers
- Approved for work involving asbestos according to TRGS 519 issued by the German Federal Institute for Occupational Safety and Health (BAUA)
- OSHA 1926.1153 Table 1 compliant, virtually dust-free drilling with TE 4-22 and TE 6-22 cordless rotary hammers (HEPA filter included as standard)
PRODUCT INFORMATION
Dust removal system DRS-TE 6
- Item Number: 370028
- # of items in Package: 1
TECHNICAL DATA
- For use with : TE 4-22, TE 6-22
- Weight: 1 kg
- Hammer drilling diameter range: 4 - 20 mm
- Maximum drilling depth: 110 mm
- Need vacuum cleaner: No
